| Type |
Type |
Digital, single-lens reflex, AF/AE camera with built-in flash |
| Recording media |
SD/SDHC*/SDXC* memory cards
* UHS-I cards supported |
| Image sensor size |
Approx. 22.3 x 14.9 mm |
| Compatible lenses |
Canon EF lenses (including EF-S lenses)
* Excluding EF-M lenses
(35mm-equivalent angle of view is that of a lens with approx. 1.6x the focal length indicated.) |
| Lens mount |
Canon EF mount |
| Image Sensor |
Type |
CMOS sensor |
| Effective pixels |
Approx. 24.2 megapixels
* Rounded off to the nearest 10,000th. |
| Aspect ratio |
3:2 |
| Dust delete feature |
Auto, Manual, Dust Delete Data appending |
| Recording System |
Recording format |
Design rule for Camera File System (DCF) 2.0 |
| Image type |
JPEG, RAW (14-bit Canon original),
RAW+JPEG simultaneous recording possible |
| Pixels recorded |
L (Large) : 24.0 megapixels (6000 x 4000)
M (Medium) : Approx. 10.6 megapixels (3984 x 2656)
S1 (Small 1) : Approx. 5.9 megapixels (2976 x 1984)
S2 (Small 2) : Approx. 2.5 megapixels (1920 x 1280)
S3 (Small 3) : Approx. 350,000 pixels (720 x 480)
RAW : 24.0 megapixels (6000 x 4000)
M-RAW : 13.5 megapixels (4500 x 3000)
S-RAW : 6.0 megapixels (3000 x 2000) |
| Aspect ratio |
3:2, 4:3, 16:9, 1:1 |
| Create/select a folder |
Possible |
| File numbering |
Continuous, Auto reset, Manual reset |
| Image Processing During Shooting |
Picture Style |
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined 1 – 3 |
| White balance |
Auto (Ambience priority), Auto (White priority), Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Custom, Color temperature setting (approx. 2500-10000 K), White balance correction, and White balance bracketing provided
* Flash color temperature information transmission enabled |
| Noise reduction |
Applicable to long exposures and high ISO speed shots |
| Automatic image brightness correction |
Auto Lighting Optimizer provided |
| Highlight tone priority |
Provided |
| Lens aberration correction |
Peripheral illumination correction, Chromatic aberration correction, Distortion correction |

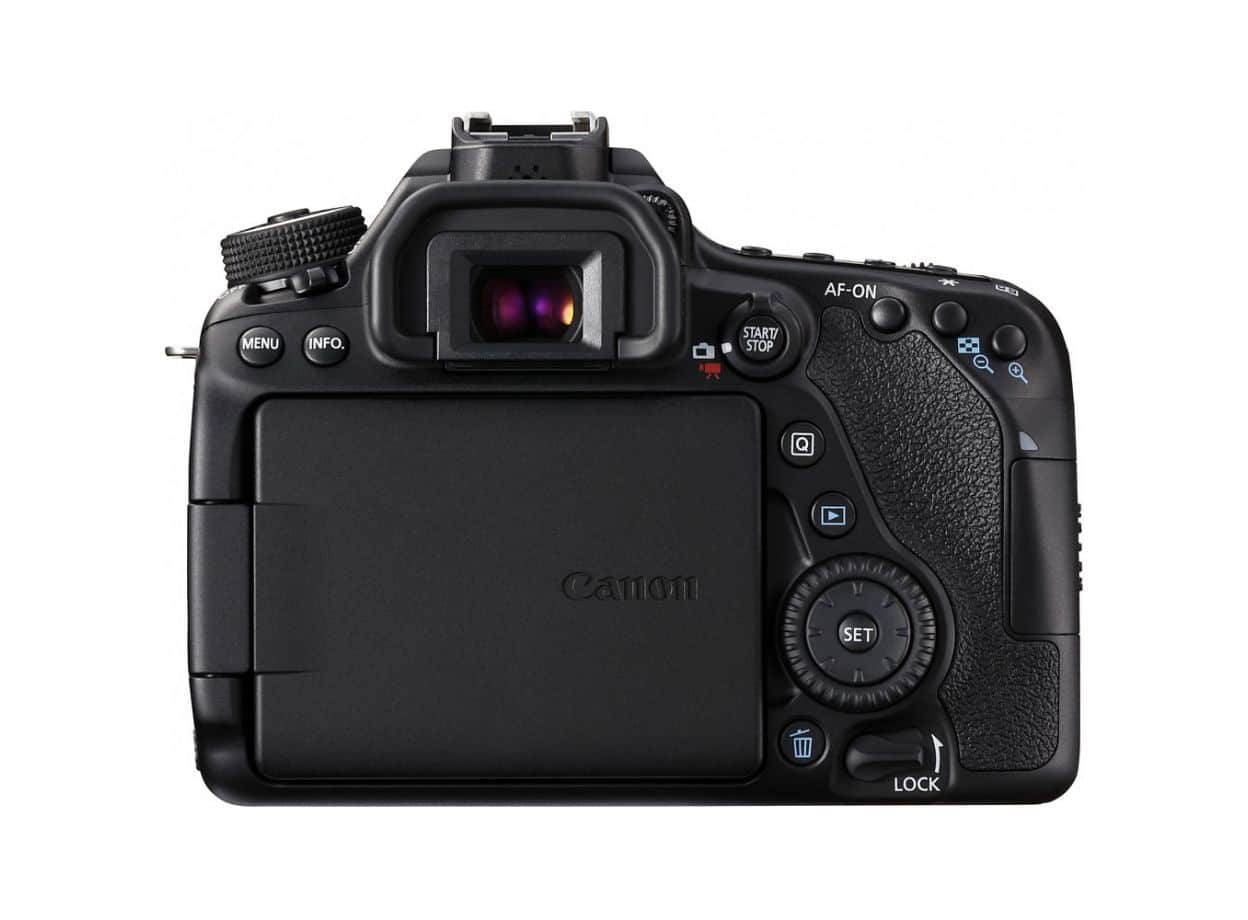

| Viewfinder |
Type |
Eye-level pentaprism |
Coverage
(by aspect ratio) |
3:2 (vertical: approx. 100%, horizontal: approx. 100%), 4:3 (vertical: approx. 100%, horizontal: approx. 97%), 16:9 (vertical: approx. 97%, horizontal: approx. 100%), 1:1 (vertical: approx. 100%, horizontal: approx. 96%)
*With eyepoint at approx. 22mm. |
| Magnification |
Approx. 0.95x (-1 m-1 with 50mm lens at infinity) |
| Eye point |
Approx. 22mm (from eyepiece lens center at -1 m-1) |
| Diopric adjustment range |
Approx. -3.0 – +1.0 m-1 (dpt) |
| Focusing screen |
Fixed |
| Grid display |
Provided |
| Electronic level |
Provided |
| Mirror |
Quick-return type |
| Depth-of-field preview |
Provided |
| Autofocus (for viewfinder shooting) |
Type |
TTL secondary image-registration, phase-difference detection with the dedicated AF sensor |
| AF points |
45 (Cross-type AF point: Max. 45 points)
* Number of available AF points, Dual cross-type AF points, and cross-type AF points vary depending on the lens used and aspect ratio settings.
* Dual cross-type focusing at f/2.8 with center AF point.
(AF group: When Group A lenses are used) |
| Focusing brightness range |
EV -3 – 18 (with the center AF point supporting f/2.8, One-Shot AF, at room temperature, ISO 100) |
| Focus operation |
One-Shot AF, AI Servo AF, AI Focus AF, Manual focusing (MF) |
| AF area selection mode |
Single-point AF (Manual selection), Zone AF (Manual selection of zone), Large Zone AF (manual selection of zone), 45-point automatic selection AF |
| AF point automatic selection conditions |
AF points can be selected automatically using information on colors equivalent to skin tones. |
| AI Servo AF characteristics |
Tracking sensitivity, Acceleration/deceleration tracking, AF point auto switching |
| AF fine adjustment |
AF Microadjustment (All lenses by same amount or Adjust by lens) |
| AF-assist beam |
Small series of flashes fired by built-in flash |
| Exposure Control |
Metering mode |
63-zone TTL open-aperture metering using 7560-pixel RGB plus IR metering sensor
Evaluative metering (linked to all AF points)
Partial metering (approx. 6.0% of viewfinder at center)
Spot metering (approx. 3.8% of viewfinder at center)
Center-weighted average metering |
Metering brightness
range |
EV 1 – 20 (at room temperature, ISO 100) |
| Shooting mode |
Basic Zone modes:
Scene Intelligent Auto, Flash Off, Creative Auto, Special scene modes (Food, Kids, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control, Portrait, Landscape, Close-up, Sports), Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Toy camera effect, Miniature effect, Water painting effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed)
Creative Zone modes:
Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure, Custom shooting mode |
ISO speed
(Recommended exposure index) |
Basic Zone modes*: ISO 100 – ISO 6400 set automatically
* Handheld Night Scene: ISO 100 – ISO 12800 set automatically, Landscape: ISO 100 – ISO 1600 set automatically
P, Tv, Av, M, B: ISO Auto, ISO 100 – ISO 16000 set manually (1/3- and whole-stop increments), and ISO expansion to H (equivalent to ISO 25600) |
| ISO speed settings |
Range for stills, Auto range, and Minimum shutter speed for auto settable |
| Exposure compensation |
Manual: ±5 stops in 1/3- or 1/2-stop increments
AEB: ±3 stops in 1/3- or 1/2-stop increments (can be combined with manual exposure compensation) |
| AE lock |
Auto: Applied in One-Shot AF with evaluative metering when focus is achieved
Manual: With AE lock button |
| Anti-flicker |
Possible |
| Interval timer |
Shooting interval and shot count settable |
| Bulb timer |
Bulb exposure time settable |
| HDR Shooting |
Dynamic range adjustment |
Auto, ±1, ±2, ±3 |
| Effects |
Natural, Art standard, Art vivid, Art bold, Art embossed |
| Auto image alignment |
Provided |
| Multiple Exposures |
Number of multiple exposures |
2 to 9 exposures |
| Multiple-exposure control |
Additive, Average |
| Shutter |
Type |
Electronically-controlled, focal-plane shutter |
| Shutter speed |
1/8000 sec. to 30 sec. (total shutter speed range; available range varies by shooting mode), Bulb, X-sync at 1/250 sec. |
| Drive System |
Drive mode |
Single shooting, High-speed continuous shooting, Low-speed continuous shooting, Silent single shooting, Silent continuous shooting, 10-sec. self-timer/remote control, 2-sec. self-timer/remote control |
| Continuous shooting speed |
High-speed continuous shooting: Max. approx. 7.0 shots/ sec.*
* Max. approx. 5.0 shots/sec. during Live View shooting or when [Servo AF] is set.
Low-speed continuous shooting: Max. approx. 3.0 shots/sec.
Silent continuous shooting: Max. approx. 3.0 shots/sec. |
| Max. burst |
JPEG Large/Fine: Approx. 77 shots (approx. 110 shots)
RAW: Approx. 20 shots (approx. 25 shots)
RAW+JPEG Large/Fine: Approx. 20 shots (approx. 22 shots)
* Figures are based on Canon’s testing standards (3:2 aspect ratio, ISO 100 and Standard Picture Style) using an 8 GB card.
* Figures in parentheses apply to an UHS-I compatible 16 GB card based on Canon’s testing standards. |

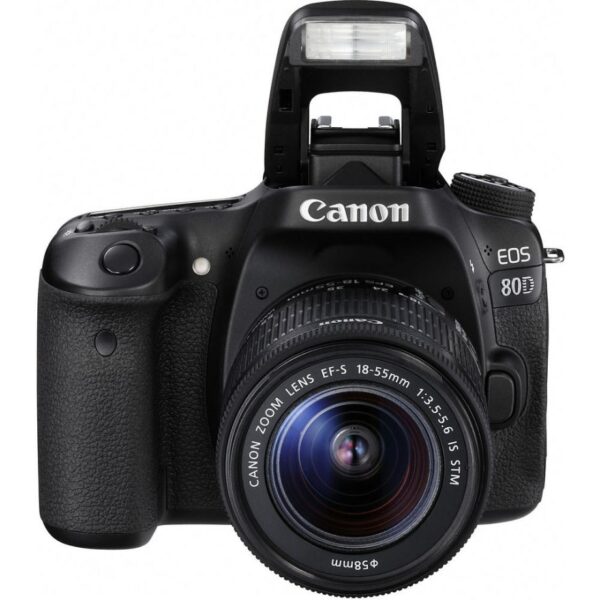

| Flash |

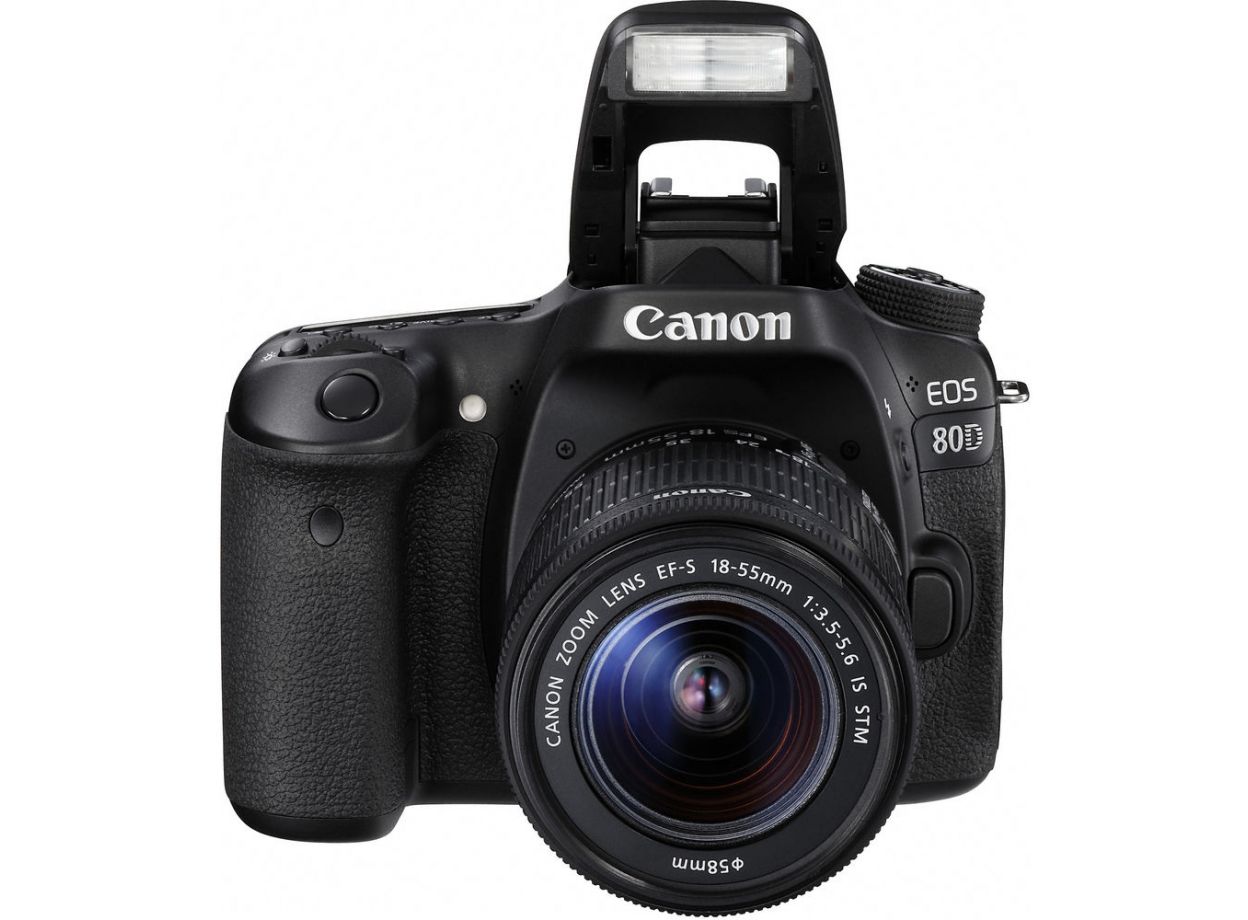

Built-in flash |
Retractable, auto pop-up flash
Guide No.: Approx. 12/39.4 (ISO 100, in meters/feet)
Flash coverage: Approx. 17mm lens angle of view
Recharge time: Approx. 3 sec. |
| External Speedlite |
Compatible with EX-series Speedlites |
| Flash metering |
E-TTL II autoflash |
| Flash exposure compensation |
±3 stops in 1/3- or 1/2-stop increments |
| FE lock |
Provided |
| PC terminal |
None |
| Flash control |
Built-in flash function settings, external Speedlite function settings, external Speedlite Custom Function settings
Wireless flash control via optical transmission possible |
| Live View Shooting |
Focus method |
Dual Pixel CMOS AF system |
| AF method |
Face+Tracking, FlexiZone-Multi, FlexiZone-Single
Manual focus (approx. 5x / 10x magnification possible) |
| AF operation |
One-Shot AF, Servo AF |
| Focusing brightness range |
EV 0 – 18 (at room temperature, ISO 100) |
| Metering mode |
Evaluative metering (315 zones), Partial metering (approx. 6.1% of Live View screen), Spot metering (approx. 2.6% of Live View screen), Center-weighted average metering |
| Metering brightness range |
EV 0 – 20 (at room temperature, ISO 100) |
| Exposure compensation |
±3 stops in 1/3-stop or 1/2-stop increments |
| Creative filters |
Provided |
| Silent LV shooting |
Provided (Mode 1 and 2) |
| Touch shutter |
Provided |
| Grid display |
Three types |
